Features and advantages

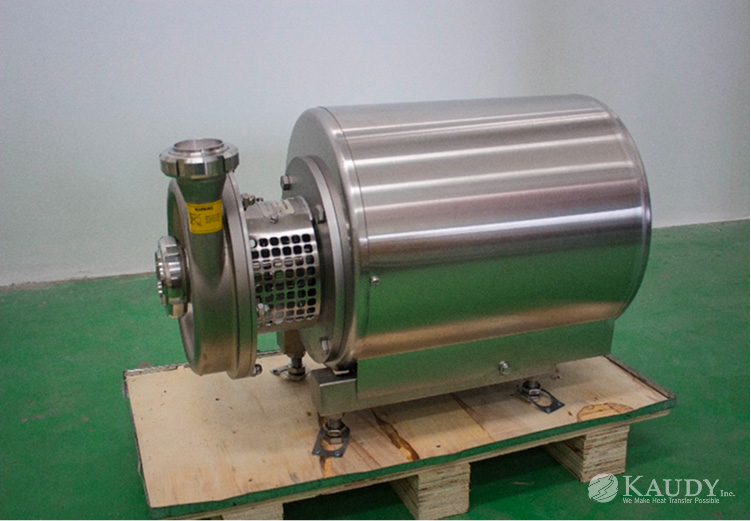

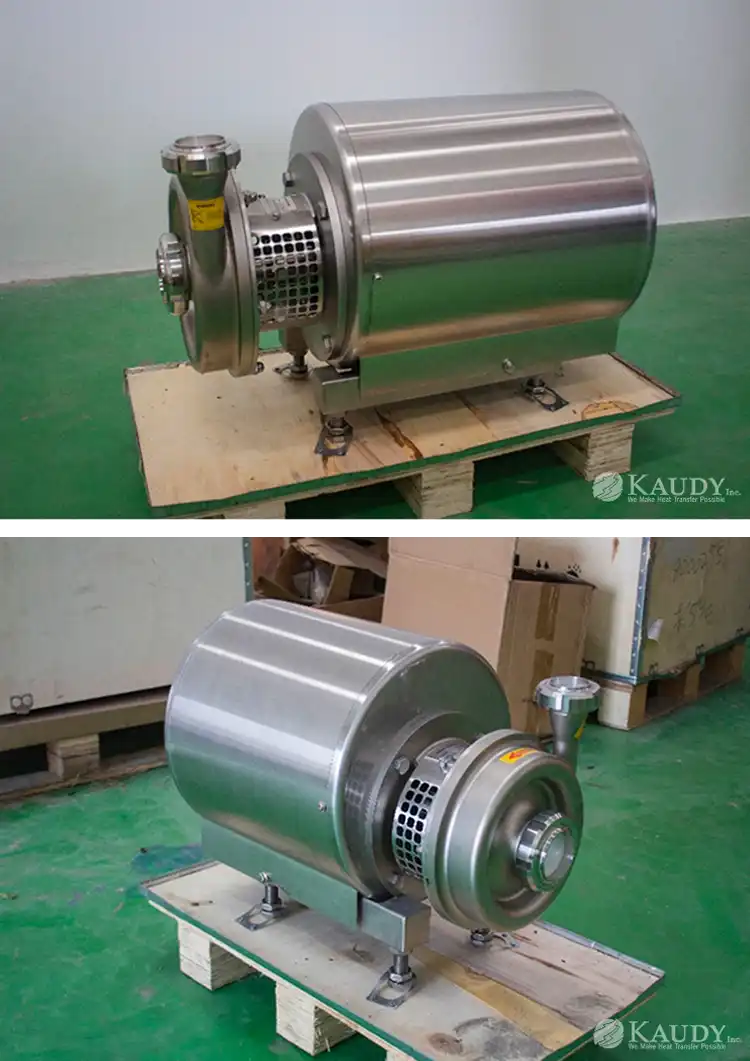

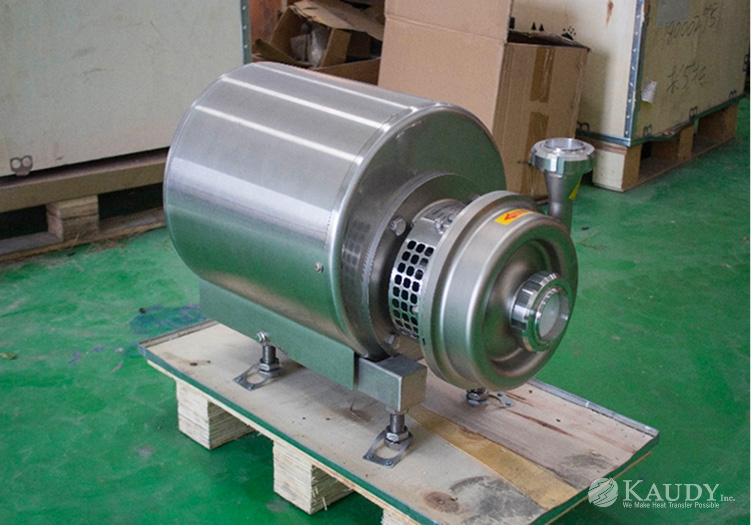

KAC sanitary centrifugal pumpseries features single-stage, single suction and open impeller. the casing, impeller and back plates are well designed to reduce the resistance, eliminate dead space and increase the flow in the pump. Thus, the overall performance is improved. The open impeller ensures the best cleavability (CIP) and outstanding sanitary. There are still other advantages such as stability, high efficiency and easy maintenance. Futhermore, the adjustable supporting legs. The legs can be adjusted to any angle so the outlet cnan be aligned with the existing pumpline.

Application
KAC sanitary centrifugal pump series is widely used in the transportation in dairy, beer, beverages, pharmaceutical and chemical industries.

Impeller semi/open design
* Semi-open impeller design ensures hydraulic efficiency as well as clean ability
* Blade design optimized to reduce NPSHr and improve hydraulic efficiency
* Balancing holes in the impeller enables fluid to flow easily between the impeller and back plate as well as into the sealed area
* Fixed with impeller nut

Technical Parameters
Max. inlet pressure: 0.5 MPa
Temperature range: -10 ℃ upto 140℃ (EPDM)
Water pressure: max 0.1 MPa
Flow rate: 0.25 - 0.5 L/min

Material
Medium-contacting parts: 304 or 316L stainless steel
Other parts: 304 stainless steel
Auxiliary seal: EPDM, VMQ, FKM, PTFE
Machinery sealed material: C-SiC, and TC-TC
